Compact Medical

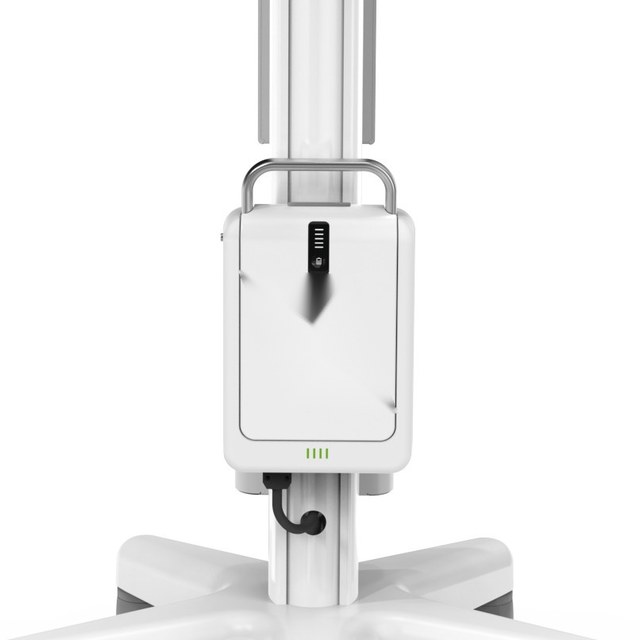

MedXP Lite Dockstation
A budget-friendly, single-pack battery for telehealth and point-of-care carts that don’t need hot-swap — strong capacity, only the essential outputs.
289 Wh
9 lb complete system
UL60601 tested
or call (800) 222-1440
What’s Built In
The MedXP-400 platform, simplified for a lighter budget.
Built for facilities that need a compact, medical-grade battery without paying for hot-swap capability they won’t use — the hot-swap circuitry is gone, the multiple DC outputs are consolidated into one, and what’s left is a cost-effective power source sized for telemedicine equipment.
- Single DC output: 12V @ 120W or 19V @ 150W
- USB-C PD output up to 60W (20V/15V/12V/9V/5V)
- USB-A output, 18W max, QC 2.0
- Detachable holster-to-module cable in 2 ft or 6 ft lengths
Weight & Dimensions
One holster, one battery, nine pounds total.
The system mounts as a holster with a detachable wired module, so the battery itself can sit wherever it’s easiest to reach on the cart. Fully assembled, the complete Dockstation adds about 9 lbs.
Module
7.09″ × 4.49″ × 1.57″
Holster
10.12″ × 7.20″ × 2.64″
Aux Pack
10.50″ × 5.75″ × 2.00″
Total assembled weight: 9 lbs.
Full Specifications
Every number, for the people who ask for them.
| Model | MEDXP-LITE, Dockstation + Aux Battery |
| Weight | 9 lbs, fully assembled |
| Module Dimensions | 7.09″ L × 4.49″ W × 1.57″ H |
| Holster / Aux Dimensions | 10.12″ × 7.20″ × 2.64″ / 10.50″ × 5.75″ × 2.00″ |
| Battery Capacity | 289 Wh |
| Total Output Power | 180W |
| Certifications | UL60601 tested, UL, FCC, CE |
| Warranty | 3-Year Limited Warranty |
Ready to spec the MedXP Lite?
Tell us your cart model and cable length preference, and we’ll get you a quote.
