Advantis NG
A modular, highly customizable control console for control centers, crisis rooms, operations, and surveillance centers — designed around operator comfort through long shifts, with power, data, and equipment built into the structure itself.
Straight, curved, or semicircular
Sit & stand option
Built to control-room ergonomic standards
or call (800) 222-1440
Health, Comfort, Productivity — in That Order
Shaped by how the operator actually works.
Every detail — from the adjustable height to where each element sits — is designed to fit the working postures of the operator and the demands of a 24/7 room. The series is built to recognized ergonomic standards for control-room workstations.
- ISO 11064-3 — ergonomic design of control centres, control-room layout.
- EN 527 (2011) — European standard for work tables and desks.
- NTP 602 — ergonomic design guidance for control rooms.
- Highly recyclable materials — aluminum, steel, and phenolic construction built for a long service life.
Modularity
One position or a full room — straight, concave, convex, or semicircular.
Advantis NG works as a single console or a collective one. An angle-generator system joins positions at the angle your room needs, so runs can curve toward a video wall, wrap into a supervisor island, or stay straight. Consoles are sized per project — a typical 4-operator curved console, for example, measures 5153 × 960 × 750 mm high (about 203″ × 38″ × 29.5″).

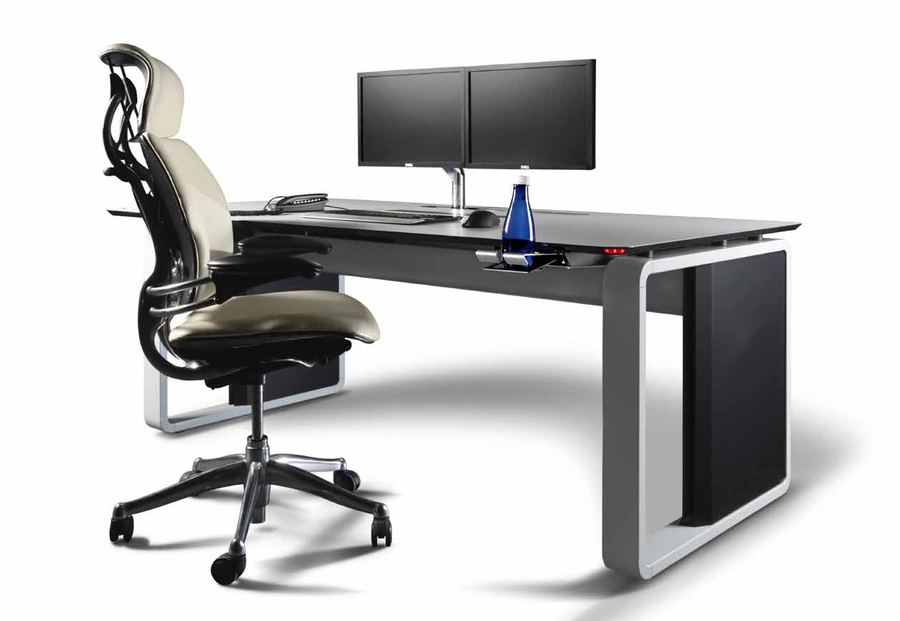

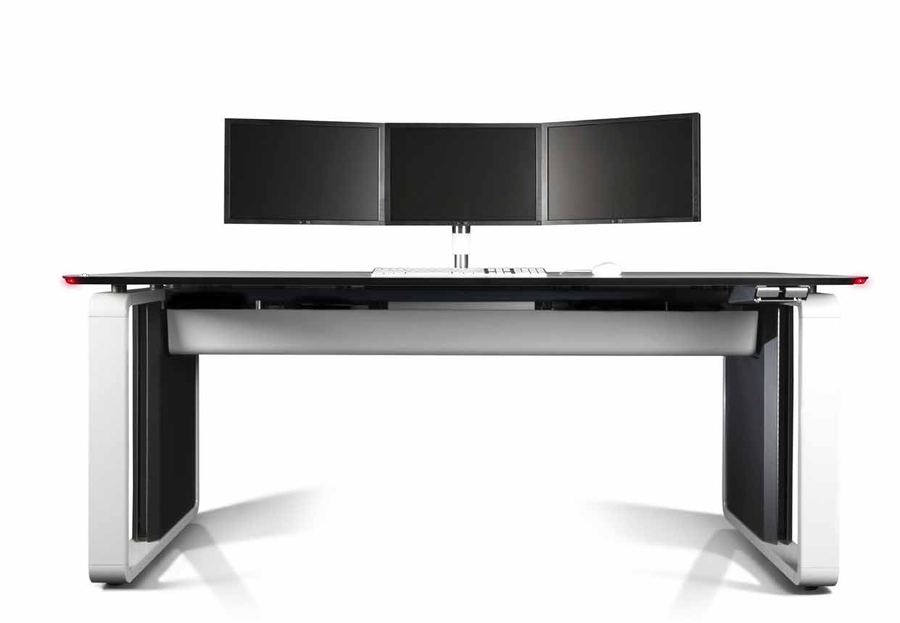

Single-operator console
The base unit — stand-alone, or the start of a larger run.

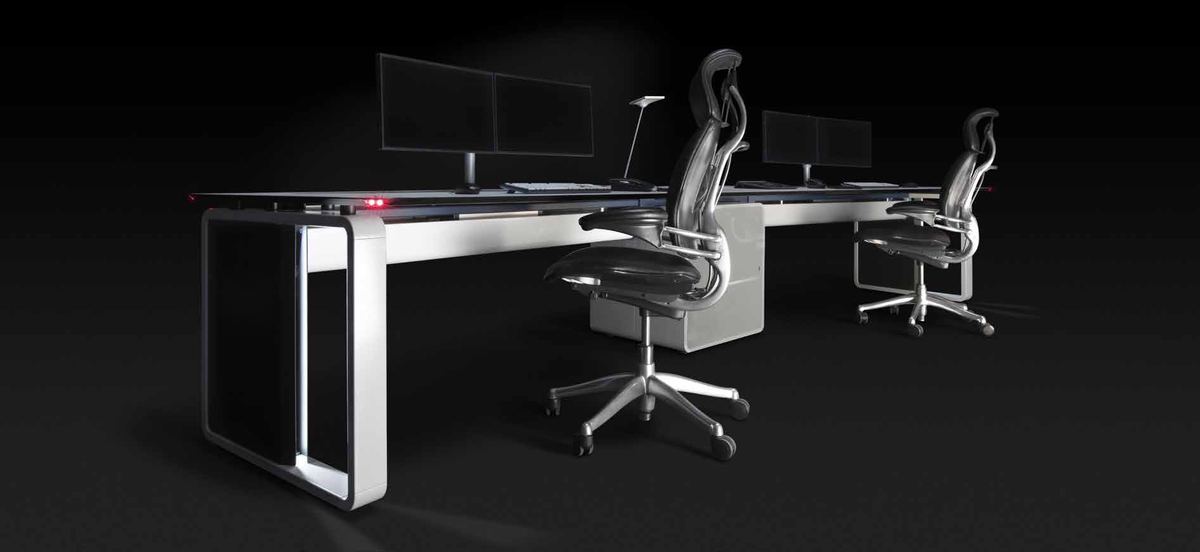

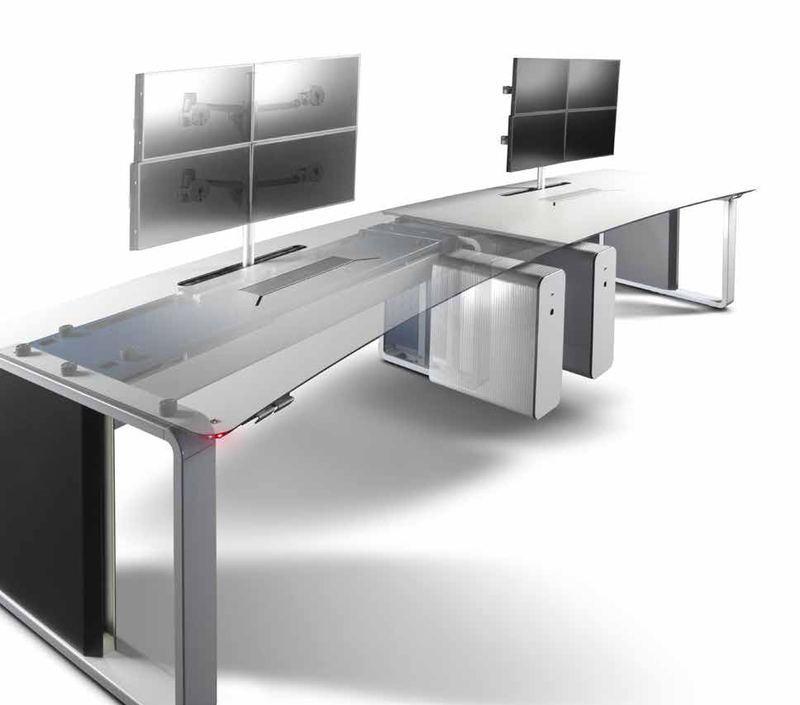

Multi-position with technical cabinets
Positions linked into one console, with equipment housed in the structure.
Operator
Standard control position
Supervisor
Oversight position for the floor
Trading
High-density screen layouts
Meeting
Shared table in the same design
Peninsula
An extension off the main run
Sit & Stand
Postural changes through a 24/7 shift.
Fixed height is standard. An optional height-adjustment system lets each operator move between sitting and standing — supporting operator health and safety through long shifts. Cable chains carry power and data through the full range of travel.
Sit & stand requires each work position to be a separate unit, so it’s planned into the layout from the start.
Seated
Standing
What Sets It Apart
Eight elements built into the structure.

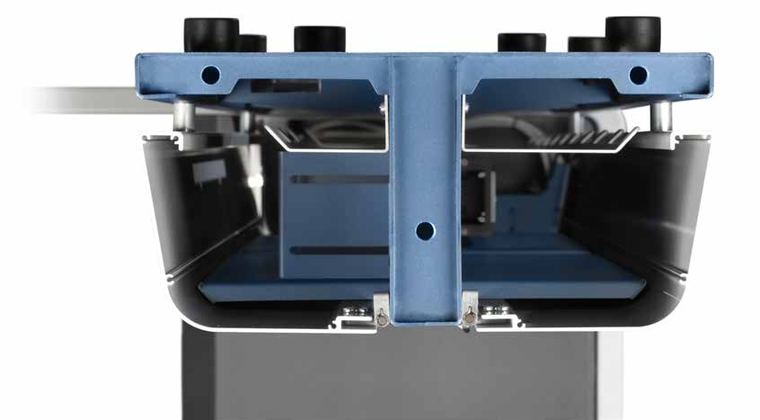

Spinal beam
The backbone of the system. It fixes the structure, routes and distributes power and data, and has room inside for KVM units, thin clients, or other electronics.
Nexus Gate
The side structures that organize wiring for maximum connectivity — with electrical terminal blocks and a 24-keystone patch panel included on each console.
Floating work surface
A work plane that isolates the operator from vibration in high-demand environments.

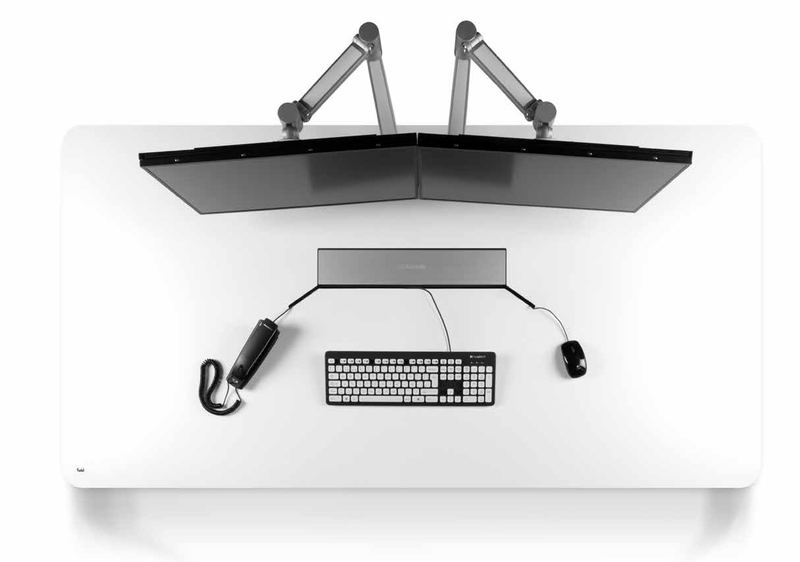

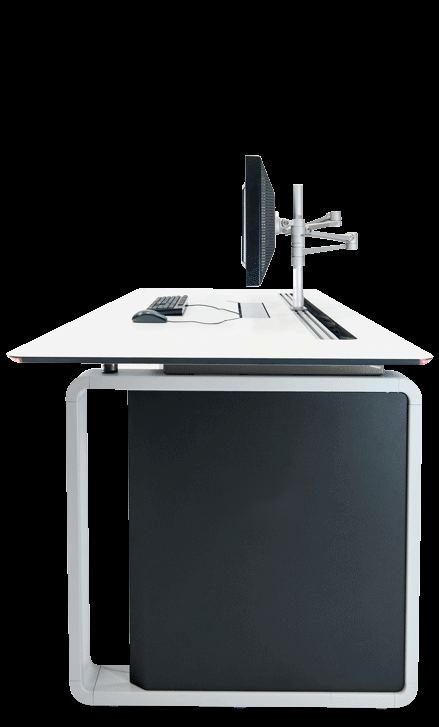

Visual ergonomics

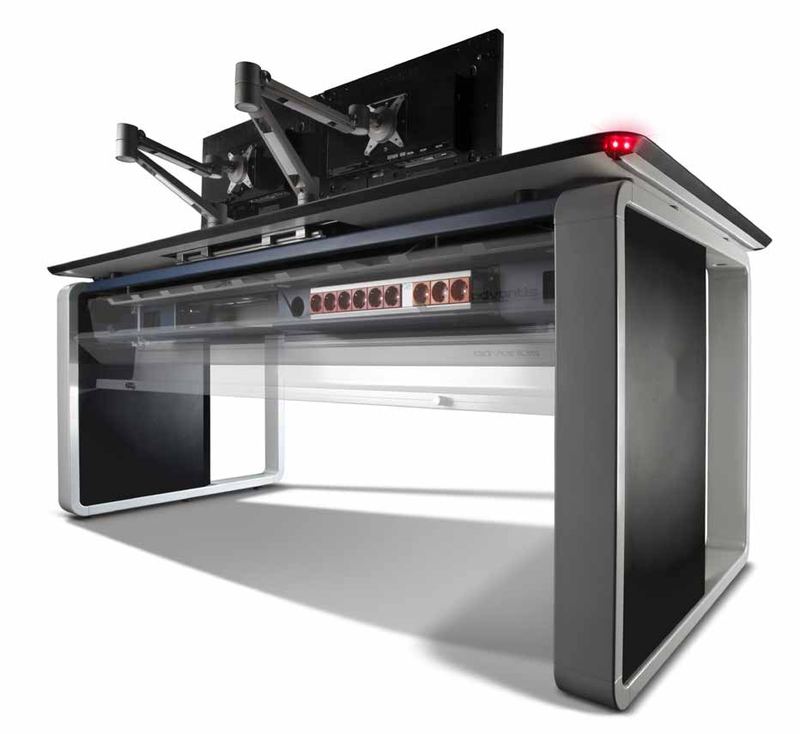

Monitor arm systems that route cables away from the operator and out of sight, leaving the work area clear.
Safety lighting
LED beacons in the work-surface corners (red standard; white, blue, or custom colors available) plus lateral side lighting.

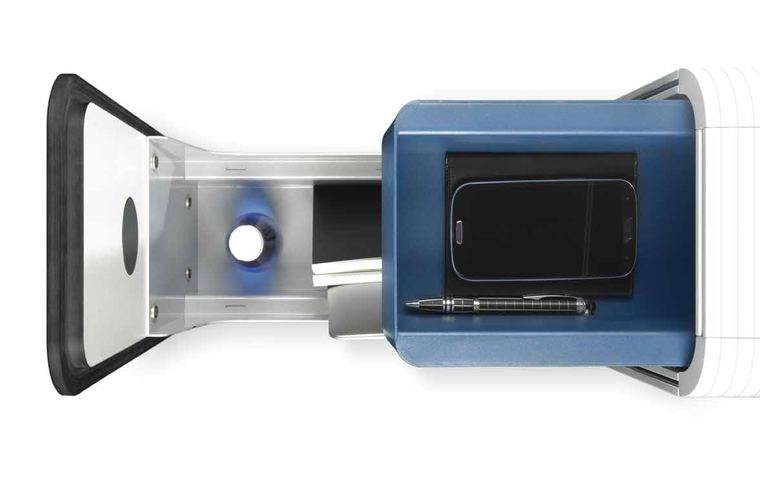

Personal dock
A space for personal effects and connectivity at each position — power, network, and USB within reach, without leaving the task.

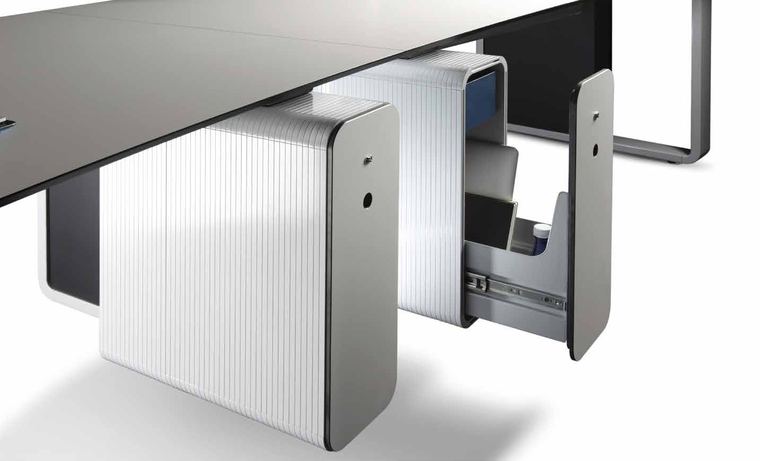

i-Box
A single container sized for documents and personal belongings — fixed under the work surface or on casters.

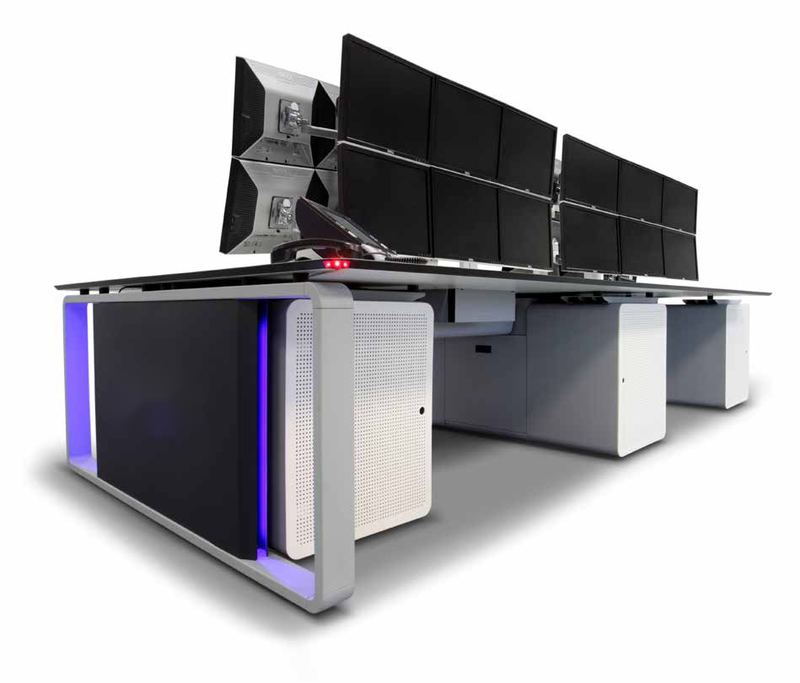

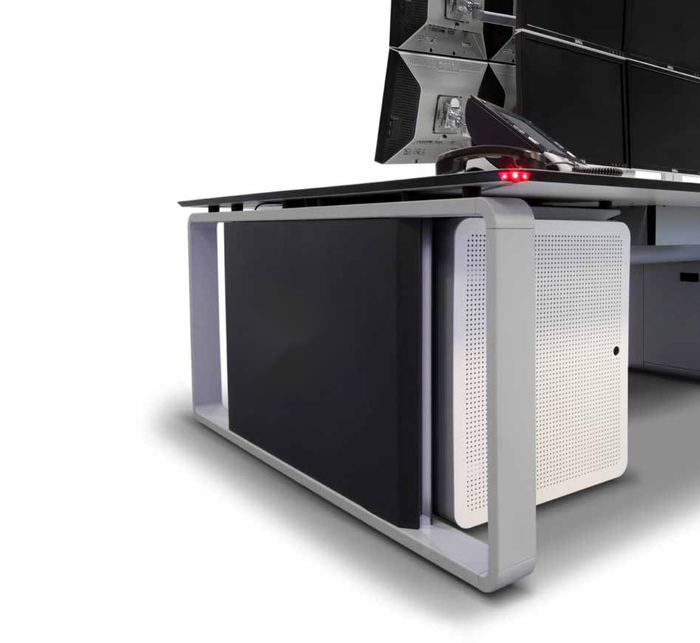

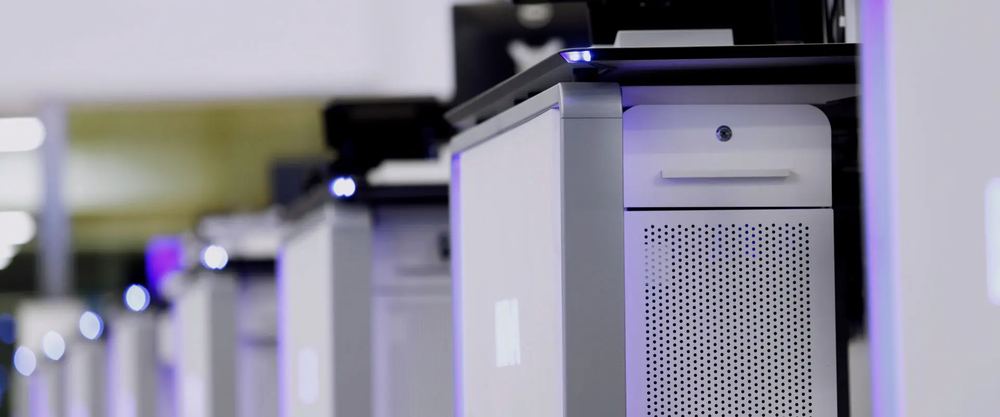

Technical cabinet
Equipment cabinets integrated into the console’s own structure, in single, double, or triple widths plus an auxiliary module.
Power, Data & Equipment
Built to keep information moving 24 hours a day.
Wiring organization is designed in from the start, so power, data, KVM, and rack equipment live inside the console rather than on the floor around it.
Rear access to the spinal beam

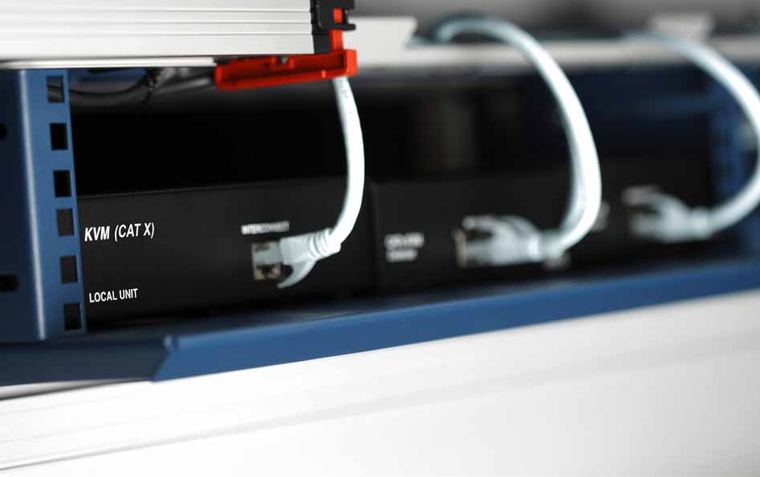

KVM and rack equipment in the beam
- Configurable power strip for each operator
- Electrical terminal blocks and a 24-keystone patch panel in each console
- Rackable equipment profiles up to 2U and a KVM tray in the spinal beam
- Server cabinets in 450 mm or 690 mm (rack) sizes, with glass or perforated-steel doors, forced ventilation, locks, and shelves
- Lockable spine doors and a modesty panel
- Work-surface add-ons: wireless phone charger, under-surface drawer, turret integration, tablet support, speakers
Finishes & Branding
Make the room look like yours.
The standard palette pairs light grey with anthracite, with DeepBlue NG marking the cable-management core of the system. Side panels, beams, and lighting can all be customized — including putting your own agency’s logo on the side panels.
| Work surface | Phenolic, 3 standard colors; white solid-surface option |
| Metallic colors | DeepBlue NG, Anthracite, Metallic Gray |
| Side panels & beam | Light grey + anthracite standard; custom colors available |
| Side-panel logo | Your backlit logo, a printed logo, or none |
| Acoustics | Optional sound-absorbing paneling |
Full Specifications
Every number, for the people who ask for them.
| Applications | Control centers, crisis rooms, operations and surveillance centers — 24/7 environments |
| Configurations | Single or multi-position; straight, concave, convex, or semicircular; operator, supervisor, trading, meeting, and peninsula versions |
| Angle System | Angle generators from 0°–22.5° and 22.5°–45° between positions |
| Example Size | 4-operator curved console: 5153 × 960 × 750 mm H (about 203″ × 38″ × 29.5″) |
| Dimensions | Configured per project — no fixed model list published |
| Height | Fixed height standard; optional sit & stand (separate positions required) |
| Spinal Beam | 1000–2800 mm lengths in 300 mm steps (about 39″–110″); aluminum caps, steel structure and trays; 19″ adapters |
| Materials | Aluminum profiles, steel structure, phenolic work surface |
| Monitor Mounting | Rail-based mounting standard; 4D rail, access rail, or bolt-through options. Standard arms: up to 8 kg (17.6 lb) per screen, max 24″; heavier-duty arms available |
| Connectivity | Per-operator power strip; personal dock with power, RJ45, and USB; terminal blocks and 24-keystone patch panel per console |
| Equipment | Rackable profiles up to 2U, KVM tray; integrated technical cabinets (x1, x2, x3, auxiliary); 450 mm or 690 mm server cabinets |
| Storage | i-Box personal cabinet, 200 or 300 mm, fixed or on casters; optional under-surface drawer |
| Lighting | Corner LED safety beacons (red standard; white, blue, custom); lateral LED side lighting |
| Finishes | Phenolic surface in 3 colors or white solid-surface; DeepBlue NG, Anthracite, Metallic Gray; custom colors |
| Standards | EN 527 (2011), ISO 11064-3, NTP 602 |
| Warranty | Not published — ask your rep |
Ready to spec Advantis NG?
Send a floor plan — even a hand-drawn sketch with measurements — plus your position and monitor counts. We’ll send back a rendering and drawing. GSA Schedule pricing available for qualifying agencies.
